LD Series

Mechanical Characteristics
　
d1
d2
D
L
L1
M

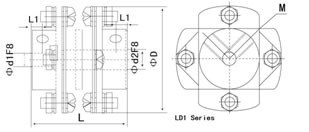

LD1
4
4
32
29
3.5
M4
6
6
32
29
3.5
M4
8
8
32
32
3.5
M4
10
10
32
32
3.5
M4

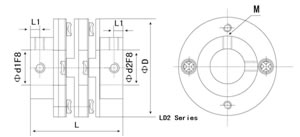

LD2
12
12
34
33
3.5
M4
15
15
42
40
4
M4
LD3
15
15
57.5
41
5.5
M4

Technical  Characteristics
Specified torque
Max.torque
Eccentric error
Eccentric angle
Max. speed
Revolve
LD1
5.5N.m
11N.m
±0.2mm
≤1.5°
12000 mim-1
synchronous Revolve
LD2
5N.m
10N.m
±0.2mm
≤1.5°
11000 mim-1
synchronous Revolve
LD3
6N.m
12N.m
±0.2mm
≤1.5°
9000 mim-1
synchronous Revolve
