| LE1 Series |
|
|
 |
 |

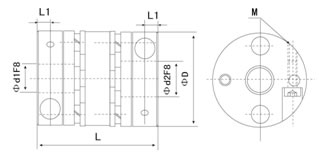

Mechanical Characteristics
|
d1 |
d2 |
D |
L |
L1 |
M |
5 |
5 |
18,20,26 |
46 |
3.5 |
M4 |
6 |
6 |
18,20,26 |
46 |
3.5 |
M4 |
8 |
8 |
18,20,26 |
46 |
3.5 |
M4 |
10 |
10 |
18,20,26 |
46 |
3.5 |
M4 |
12 |
12 |
18,20,26 |
46 |
3.5 |
M4 |
| LE2 Series |
|
|
 |
 |
| Mechanical Characteristics |
d1 |
d2 |
D |
L |
L1 |
M |
5 |
5 |
18,20,26 |
33.5 |
3.5 |
M2.5 |
6 |
6 |
18,20,26 |
33.5 |
3.5 |
M2.5 |
8 |
8 |
18,20,26 |
33.5 |
3.5 |
M2.5 |
10 |
10 |
18,20,26 |
46 |
3.5 |
M4 |
12 |
12 |
18,20,26 |
46 |
3.5 |
M4 |
15 |
15 |
18,20,26 |
46 |
3.5 |
M4 |
| Technical Characteristics |
|
Specified torque |
Max.torque |
Eccentric error |
Eccentric angle |
Max. speed |
Revolve |
LE1 |
1N.m |
2N.m |
±0.5mm |
≤0.5° |
8000 mim-1 |
synchronous Revolve |
LE2 |
9N.m |
18N.m |
±0.2mm |
≤2.5° |
19000 mim-1 |
synchronous Revolve |
|
